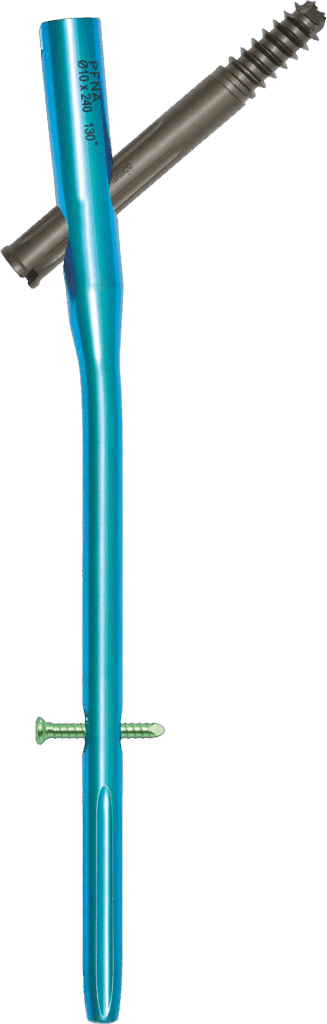

Proximal Femoral Interlocking Nail Antirotation
Product Overview
The PFINA Nailing System is an intramedullary implant designed for the treatment of unstable trochanteric femoral fractures.
It offers the additional option of augmentation. The PFINA System is specifically designed to improve fracture management,
particularly in the elderly. It allows for easy insertion, provides angular and rotational stability, and enables early weight
bearing on the affected limb.
The PFINA has a medial-lateral angle of 6°
This allows insertion at the tip of the greater trochanter.

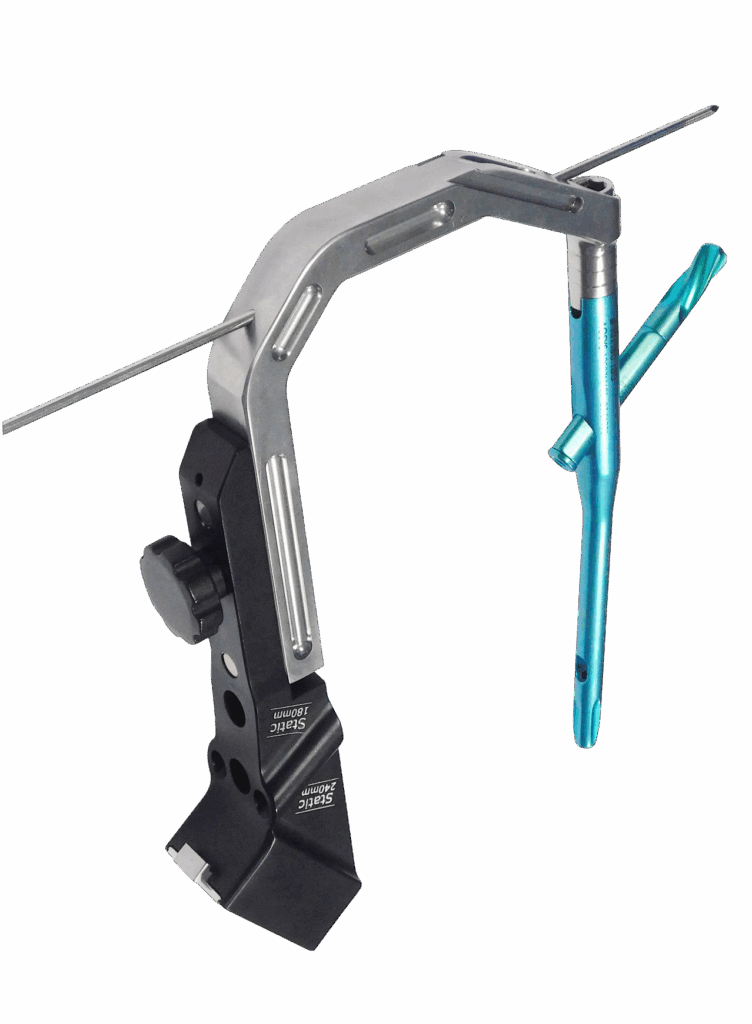

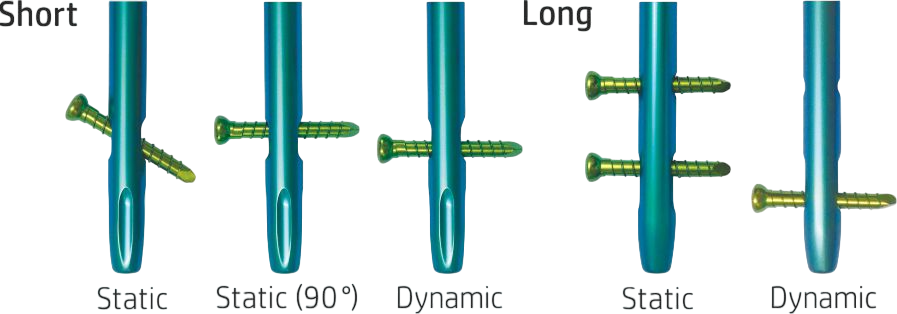

Several Distal Locking options
Static or Dynamic Locking can be
performed via the aiming arm with
PFINA standard and small.
The PFINA long additionally allows for secondary dynamization
PFINA Blade
Rotational and angular stability achieved with one single element
Compaction of cancellous bone
Inserting the Proximal Femoral Interlocking Nail Antirotation blade compacts the cancellous bone
providing additional anchoring. which is especially important in osteoporotic bone

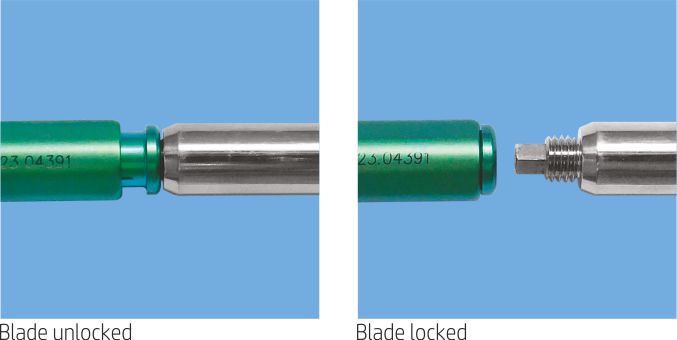

Lateral locking of the PFINA blade
The Proximal Femoral Nail Interlocking
Antirotation blade is automatically locked to prevent rotation of the blade and femoral head

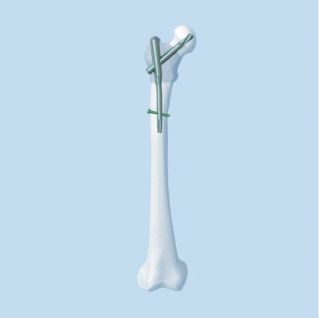

PFINA Short (Length 180mm - 240mm)
Indications
– Pertrochanteric fractures
– Intertrochanteric fractures
– High subtrochanteric fractures
Contraindications
– Low subtrochanteric fractures
– Femoral shaft fractures
– Isolated or combined medial femoral neck fractures

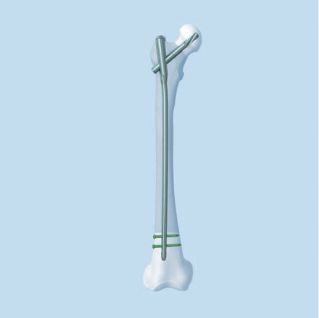

PFINA Long (Length 320 mm – 440 mm)
Indications
– Low and extended subtrochanteric fractures
– Ipsilateral trochanteric fractures
– Combination fractures (in the proximal femur)
– Pathological fractures
Contraindications
– Isolated or combined medial femoral neck fractures
Product Features
Proximal Femoral Interlocking Nail Antirotation Short :
◆ Pertrochanteric fractures
◆ Intertrochanteric fractures
◆ High subtrochanteric fractures
Proximal Femoral Interlocking Nail Antirotation Long :
◆ Low and extended subtrochanteric fractures
◆ Ipsilateral trochanteric fractures
◆ Combination fractures in the proximal femur
◆ Pathological fractures
Intended Use
Proximal Femoral Interlocking Nail Antirotation Short :
◆ Pertrochanteric fractures
◆ Intertrochanteric fractures
◆ High subtrochanteric fractures
Proximal Femoral Interlocking Nail Antirotation Long :
◆ Low and extended subtrochanteric fractures
◆ Ipsilateral trochanteric fractures
◆ Combination fractures in the proximal femur
◆ Pathological fractures

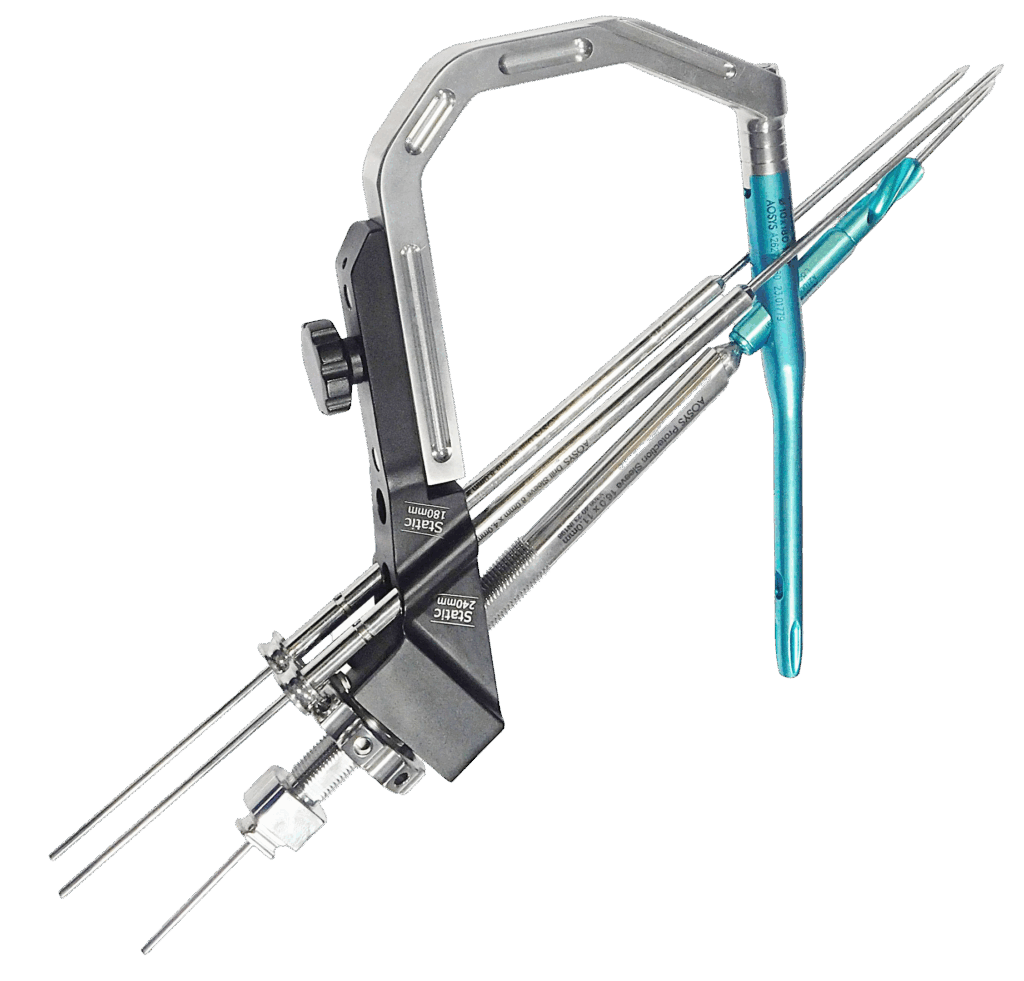

Position the C-arm in the true lateral view
(Alignment of the axis of the femoral neck
congruent with the axis of the femoral shaft).
In the lateral view, rotation of the nail can be
adjusted with the two orientation lines in the
insertion handle for Proximal Femoral Interlocking
Nail Antirotation.
Use image intensier control to insert
a guide wire into the femoral head
to prevent anti-rotation.
If a second anti-rotation wire is necessary,
use the same procedure to insert
it into the femoral head.

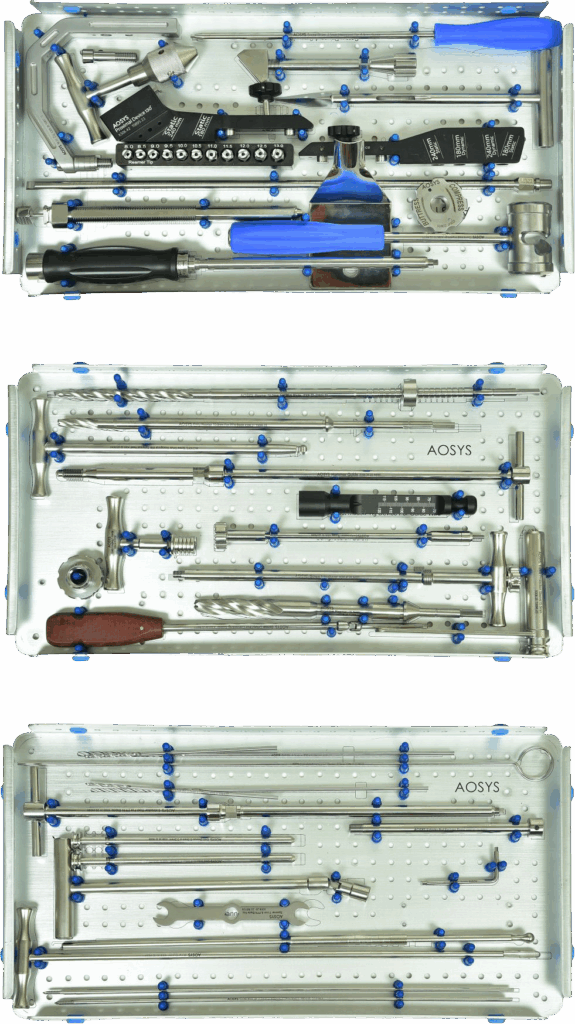

(X306) Instrument Set For Proximal Femoral Interlocking Nail Antirotation
Sr. | Ref. No. | Product Name | Qty. |
1 | X904.59 | Guide Wire 3.2mm x 400mm Threaded | 4 |
2 | X306.55 | Guide Wire Long 3.0mm x 600mm | 1 |
3 | X904.60 | Guide Wire Bullet tip Dia. 2.5mm x 1150mm | 1 |
4 | X902.05 | Drill Bit 4.0mm x 300mm | 1 |
5 | X902.15 | Drill Bit Dia. 3.2mm x 300mm | 1 |
6 | X306.05 | Drill Sleeve (8.0mm x 4.0mm) | 1 |
7 | X306.06 | Drill Sleeve (8.0mm x 3.2mm) | 1 |
8 | X306.07 | Protection Sleeve (11.0mm x 8.0mm) | 2 |
9 | X306.08 | Guide Wire Sleeve (11.0mm x 3.2mm) | 1 |
10 | X306.09 | Depth Guage for Interlocking nail | 1 |
11 | X904.10 | Guide Wire Simple Dia. 2.5mm x 1150mm | 1 |
12 | X902.02 | Drill Bit, 3.2mm x 170mm | 1 |
13 | X902.04 | Drill Bit, 4.0mm x 170mm | 1 |
14 | X306.13 | Combined Hammer | 1 |
15 | X306.14 | Proximal Entry Reamer, 15.5mm | 1 |
16 | X306.15 | Screw Driver 4.9mm (Hexagonal) | 1 |
17 | X306.16 | Guide Wire Sleeve 15.5mm x 3.2mm | 1 |
18 | X306.17 | Cannulated Instrument Cleaner 3.0mm | 1 |
19 | X306.18 | Trocar 3.2mm | 1 |
20 | X306.19 | Compression Screw for PFNA | 1 |
21 | X306.20 | Extractor Rod for Lag Screw | 1 |
22 | X306.21 | Entry Reamer, 10.0mm for PFNA Blade | 1 |
23 | X306.22 | Reamer, 10.0mm for PFNA Blade | 1 |
24 | X306.23 | Impactor for PFNA Blade | 1 |
25 | X306.24 | End Cap Box Spanner With Capture | 1 |
26 | X306.25 | Hammer Guide | 1 |
27 | X306.26 | Wire Guide | 1 |
28 | X306.27 | Allen Key | 1 |
29 | X307.27 | Guide Wire Pusher | 1 |
30 | X306.29 | Spanner with Blade Key, 11 mm | 1 |
31 | X306.30 | Direct Measuring Device for Guide Wire | 1 |
32 | X306.31 | Extractor Rod for PFN Blade | 1 |
33 | X306.32 | Screw Driver Hexagonal With Spherical Head | 1 |
34 | X306.33 | Bone AWL With T Handle | 1 |
35 | X306.34 | Quick Coupling “T” Handle | 1 |
36 | X306.35 | Tissue Protection Sleeve 15.5mm | 1 |
37 | X306.36 | Main Zig for PFNA | 1 |
38 | X306.37 | Conical Bolt for PFNA | 2 |
39 | X306.38 | Distal Device for PFNA | 1 |
40 | X306.39 | Tissue Protector | 1 |
41 | X306.40 | Protection Sleeve, 16.0mm x 11.0mm (PFN Blade) | 1 |
42 | X306.49 | Buttress Nut for Protection Sleeve | 1 |
43 | X306.42 | Proximal Device 130° | 1 |
44 | X306.43 | Connector for PFN Zig | 1 |
45 | X306.44 | Screw Driver for Connecting Screw | 1 |
46 | X306.45 | Screw Introducer | 1 |
47 | X306.48 | Tommy Bar | 1 |
48 | X306.52 | Ruler | 1 |
49 | X306.50 | Flexble reamer 15.5 cannulated | 1 |
50 | X306.53 | PFNA Instrument Box | 1 |
51 | X306.54 | IMPLANT BOX for PFNA Long & Short | 1 |
52 | X306.56 | PFNA Implant Box Short | 1 |
|
| Additional Instruments |
|
53 | X903.01 | Flexible Reamer Shaft Dia. 8mm x 470mm SS | 1 |
54 | X903.02 | Reamer Tip Dia. 8.0mm SS | 1 |
55 | X903.03 | Reamer Tip Dia. 8.5mm SS | 1 |
56 | X903.04 | Reamer Tip Dia. 9.0mm SS | 1 |
57 | X903.05 | Reamer Tip Dia. 9.5mm SS | 1 |
58 | X903.06 | Reamer Tip Dia. 10.0mm SS | 1 |
59 | X903.07 | Reamer Tip Dia. 10.5mm SS | 1 |
60 | X903.08 | Reamer Tip Dia. 11.0mm SS | 1 |
61 | X903.09 | Reamer Tip Dia. 11.5mm SS | 1 |
62 | X903.10 | Reamer Tip Dia. 12.0mm SS | 1 |
63 | X903.11 | Reamer Tip Dia. 12.5mm SS | 1 |
64 | X903.12 | Reamer Tip Dia. 13.0mm SS | 1 |
65 | X306.57 | Bone Awl Curved Cannulated 8.0 / 4.7 with T Handle | 1 |
