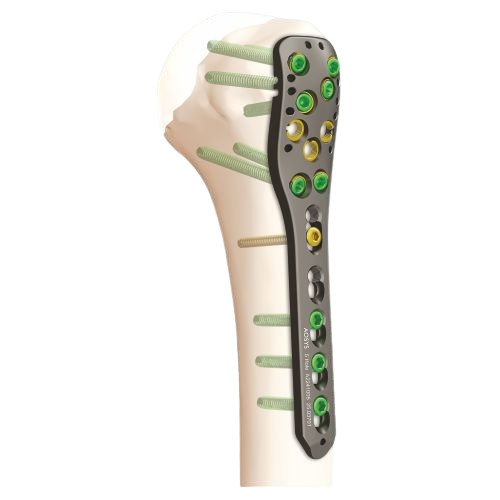

Anatomically Contoured Plate Profile
- Each plate is anatomically shaped to match the natural curvature of the bone.
- The low-profile design minimizes soft tissue irritation and allows minimally invasive application through smaller incisions.

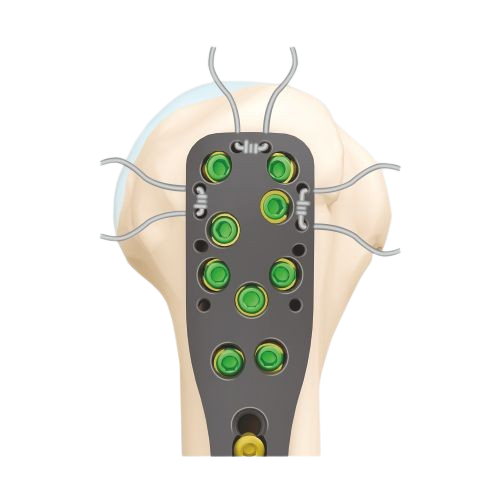

Peripheral Suture Holes
• Peripheral suture holes support
soft-tissue reattachment and
rotator cuff repair.
• Promote joint stability and assist
biological healing, especially in
osteoporotic or comminuted
fractures.

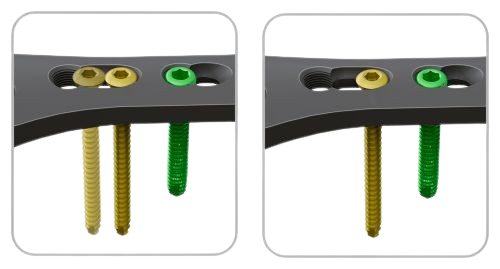

Combi & Elongated Combi Holes
- Accept both 3.5 mm cortical and 3.5 mm locking screws.
- Dynamic compression slots allow controlled fracture compression during reduction, improving contact and healing.
Tapered Tip for MIS
- Tapered anterior edge ensures smooth insertion under soft tissue envelopes for minimally invasive procedures.
K-wire System for stable fixation & Distal K-wire Hole
- Assures accurate screw alignment and controlled angulation during insertion.
- Reduces surgical time and prevents intraoperative misalignment.
- Allows precise plate positioning during surgery.
- Aids temporary stabilization and prevents plate migration during initial fixation.
Product Code :
| SIZE | CODE | HOLE |
|---|---|---|
| SHORT | A240406202 | 2 Hole |
| SHORT | A240406203 | 3 Hole |
| SHORT | A240406204 | 4 Hole |
| SHORT | A240406205 | 5 Hole |
| LONG | A240406305 | 5 Hole |
| LONG | A240406306 | 6 Hole |
| LONG | A240406308 | 8 Hole |
| LONG | A240406310 | 10 Hole |

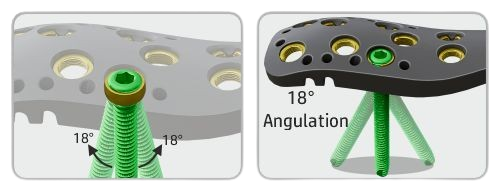

Variable Angle Locking Mechanism
- The spherical washer allows surgeons to insert locking screws at variable angles, optimizing fixation even in complex fracture geometries.
- Provides additional circumferential stability (360°) while maintaining a secure lock within the plate. while maintaining a secure lock within the plate.
- Enhances fixation strength by accommodating anatomical variations and bone density differences.
Locking Head Bone Screw, Dia. 3.5mm, Self Tapping
Length…………………………10–50mm (2mm Variation)
Length………………………..55–90mm (5mm Variation)
Reference …………………………………….SS316L : A1062
……………………………………………………Titanium : A2062
Secure Screw Fixation
- When tapered locking screws are inserted, the washer expands, locking the screw securely within the plate.
- This prevents micromotion and reduces the risk of screw back-out, ensuring long-term construct stability.

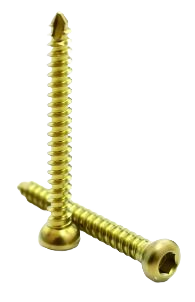

Cortical Bone Screw, Dia.3.5mm x 20 TPI, Self Tapping
Length…………………………10–50mm (2mm Variation)
Length………………………..55–70mm (5mm Variation)
Reference …………………………………….SS316L : A1024
……………………………………………………Titanium : A2024
