Nails

Alignment
Dia
Size
Reference Short
9, 10, 11, 12, 13
180, 240
SS316L : A1627
Titanium : A2627
SS316LVM : A3627

Alignment
Dia
Size
Reference Long (Left, Right)
9, 10, 11, 12, 13
320 to 440
SS316L : A1627
Titanium : A2627
SS316LVM : A3627

Note :
1. Long Nail 320mm to 460mm distal locking one dynamic hole & one static hole ML.
2. 460mm Nail in all dia manufacture against order Only.

Proximal Femoral Nail Antirotation, 130°
Alignment
Dia
Size
Reference Short 130°
9, 10, 11, 12, 13
180, 240
SS316L : A1613
Titanium : A2613
SS316LVM : A3613

Alignment
Dia
Size
Reference Long 130° (Left, Right)
9, 10, 11, 12, 13
320 to 440
SS316L : A1613
Titanium : A2613
SS316LVM : A3613

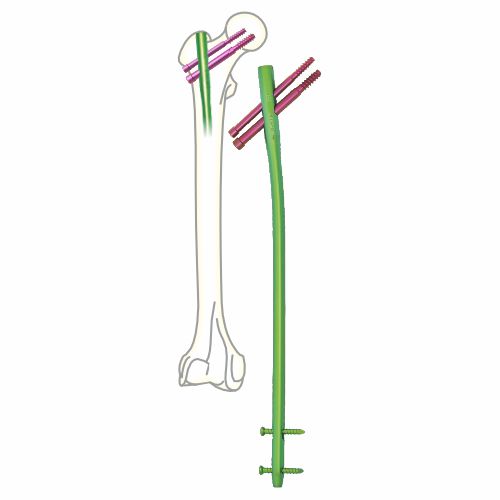

Proximal Femoral Interlocking Nail
Alignment
Dia
Size
Reference Long 130° (Left, Right)
9, 10, 11, 12, 13
320 to 440
SS316L : A1611
Titanium : A2611
SS316LVM : A3611

Antegrade Femur Interlocking Nail
Alignment
Dia
Size
Reference Short
9, 10, 11, 12, 13
160, 240
Titanium : A2617

Alignment
Dia
Size
Reference Long 130° (Left, Right)
9, 10, 11, 12, 13
300 to 440
Titanium : A2618

Note :
1. Nail Length 160mm to 240mm Proximal
Locking 2 Static Holes ML
2. Nail Length 300mm to 440mm Proximal
Locking 1 Dynamic Hole AP,
1 Static Hole ML & 1 Static Hole AP

Distal Femoral Nail
Alignment
Dia
Size
Reference –
9, 10, 11, 12, 13
320 to 460
SS316L : A1609
Titanium : A2609
SS316LVM : A3609

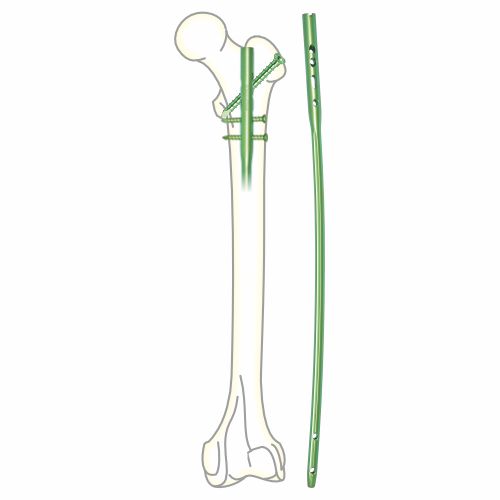

Femur Interlocking Nail
Alignment
Dia
Size
Reference –
9, 10, 11, 12, 13
260 to 400
SS316L : A1608
Titanium : A2608
SS316LVM : A3608

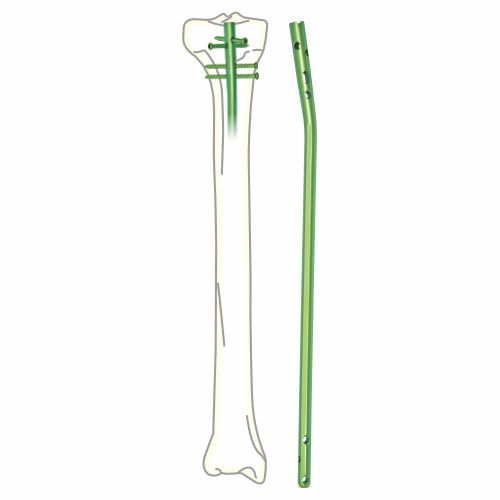

Tibia Interlocking Nail
Alignment
Dia
Size
Reference Solid
6.5, 7.5
200 to 300
Titanium : A2619

Alignment
Dia
Size
Reference Solid
6, 7, 8
200 to 300
SS316L : A1619
SS316LVM : A3619

Alignment
Dia
Size
Reference Cannulated
6.5, 7.5
180 to 300
Titanium : A2620

Alignment
Dia
Size
Reference Cannulated
6, 7, 8
180 to 300
SS316L : A1620
SS316LVM : A3620

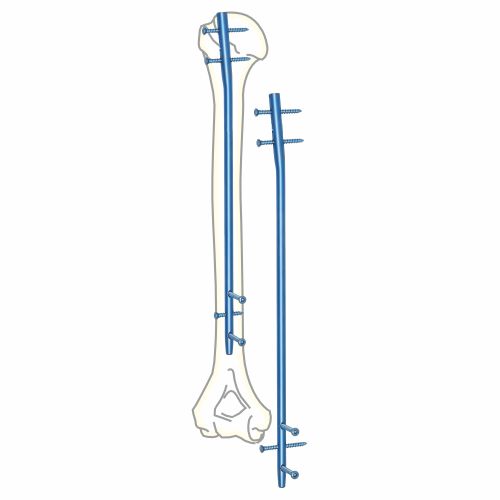

Humerus Interlocking Nail
